Description

Description
Our company primarily utilizes robotic facade cleaning solutions, specifically the HighMate series.While they are well-known for magnetic robots used in heavy industry (ships and storage tanks), they have adapted this technology for high-rise building maintenance.The most relevant model for building exteriors is typically the HighMate C20 (or similar “C” series variants designed for vertical surfaces).Key Technical Specifications (General Series)FeatureSpecificationCleaning EfficiencyUp to 500 m²/h (Replaces 3–5 manual workers)Surface Coverage>95% (Including corners and edges)WeightApproximately 60 kgDimensions~550 × 430 × 450 mmPayload Capacity50 kg (For carrying water jets or brushes)Water PressureSupports up to 500 barIngress ProtectionIP68 (Fully waterproof/dustproof)Control DistanceUp to 80 meters via remote controlCore Technologies & FeaturesAdhesion Methods: Depending on the facade material, they use Vacuum/Negative Pressure for glass and smooth stone, or Permanent Magnetic tracks for steel structures.Obstacle Negotiation: Capable of crossing gaps or obstacles up to 15 mm high, allowing it to navigate window frames and joints.Safety Systems: Features redundant fall-arrest systems and wire-rope suspension to ensure the robot remains secure even in the event of a power or suction failure.High-Pressure Cleaning: Designed to work with high-pressure water systems for deep cleaning without the need for abrasive chemicals.Smart Navigation: Uses sensors to plan the most efficient cleaning path and automatically avoid protrusions or delicate fixtures.Primary ApplicationsGlass Curtain Walls: Skyscrapers and modern office buildings.Aluminum Panels: Large-scale commercial facades.Industrial Infrastructure: Storage tanks and vertical metal surfaces.Note: Because RobotPlusPlus often customizes solutions based on the specific architecture of a building (winch-based vs. suction-based), it is highly recommended to request a specific Data Sheet from their sales team for your particular project needs at robotplusplus.com.

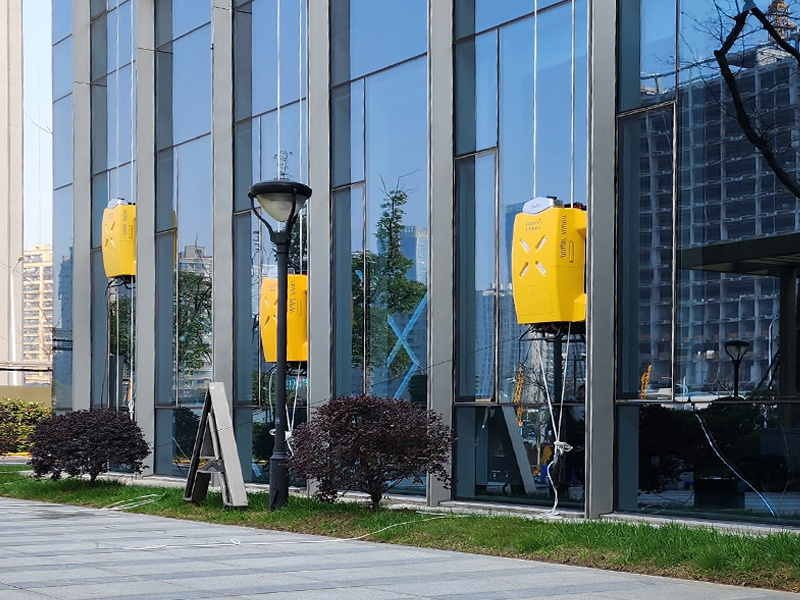

Fangshan Zhonghang Property: Exterior Wall Cleaning Operation

Technical Innovation
For the first time, the parallel robot technology with ropes is applied to exterior wall cleaning, with dual mobile winch drives and dual rope parallelism, providing mutual backup, leading the industry in technology, and ensuring no safety hazards during the operation process.

Efficiency
The cleaning efficiency is 1000 square meters per day, more than twice the efficiency of manual work; equipped with a closed water circulation system and a closed cleaning module, leaving no water stains.

Technical Leadership
Equipped with a wireless operation system and a facade navigation system, it achieves obstacle recognition and automatic return functions, exponentially increasing the work efficiency.

Energy and Water Conservation
The robot is equipped with a clean water tank and a sewage tank, and is fitted with a sewage filtration system, achieving real-time recovery and recycling of wastewater.

Wide Application Scenarios
Suitable for smooth materials such as flat glass, vertical and horizontal frame glass, aluminum panels, and wooden panels in curtain walls.
